Wrap Around Case Packer Machines

Get a Price/Quote

Product Details:

Type Wrap Around Case Packer Machine
Material Stainless Steel
Capacity 10-25 cases/min (varies by model and product)
Computerized Yes
Automatic Grade Automatic
Control System PLC Touch Screen
Shrink Speed Configurable as per packaging requirements
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wrap Around Case Packer Machines Price And Quantity

Wrap Around Case Packer Machines Product Specifications

Type Wrap Around Case Packer Machine
Capacity 10-25 cases/min (varies by model and product)
Color Silver (Customizable)
Air Pressure 0.6-0.8 MPa
Material Stainless Steel
Voltage 380V / 50Hz, 3 Phase
Control System PLC Touch Screen
Weight Approx. 1800 Kg
Automatic Grade Automatic
Shrink Speed Configurable as per packaging requirements
Computerized Yes
Roll Diameter Up to 400 mm
Dimension (L*W*H) ~4500mm x 2200mm x 2100mm

Product Description

This advanced technology Wrap Around Case Packer Machine is designed to automatically count and pack the units and packages. It is designed to conduct the packaging in a wrap around tray or case according to the demands of the clients. It comes with modern phase shift technology with tight compact case or tray design to allow packaging of the products with high-efficacy. Index feeder along with stations is available with the machine to ensure efficient and swift loading, closing as well as forming the case. Durable and efficient vacuum cups are available for taking cartons from magazine.

Features of Wrap Around Case Packer Machine:

Capacity of magazine is approx 250 cartons
Glue applicator, modern PLC controller and color touch screen available
Double track for high speed product grouping
Loading arm, sensors and stainless steel contact parts

Advanced Automation for Diverse Industries

Our wrap around case packer excels in packaging bottles, cans, cartons, and jars, making it a versatile choice for food, beverage, pharmaceutical, and consumer goods sectors. With an industry-leading servo-driven feeding system and automatic lubrication, consistent and reliable performance is assured across varying applications. The machine accommodates multiple carton sizes and packaging needs, enhancing flexibility on production lines.

Optimized Performance and Safety

Delivering a capacity of 10-25 cases per minute, the machine stands out for its energy efficiency (approx. 5.5 kW consumption) and reduced operating noise (<75 dB). Operator safety is prioritized through integrated features like emergency stop, safety doors, and overload protection. Its PLC touch screen control system enables intuitive operation, while an automatic lubrication system ensures longevity and minimal maintenance.

User-Centric Design and Easy Transition

Designed with a tool-less changeover system, this case packer enables fast product shifts (within 20 minutes), significantly reducing downtime. The adjustable conveyor height and a wide carton size range further support diverse product requirements. Its stainless steel construction and customizable color enhance durability and visual integration into existing production setups.

FAQs of Wrap Around Case Packer Machines:

Q: How does the wrap around forming method benefit my packaging operations?

A: The wrap around forming method improves packaging efficiency by folding and forming the corrugated carton around the product, offering a snug fit. This process ensures better product stability during transport, optimizes material usage, and enhances overall presentation compared to traditional case erectors.

Q: What products and industries are best suited for this case packer?

A: This machine is ideal for packing bottles, cans, cartons, and jars, serving sectors like food & beverages, pharmaceuticals, and consumer goods. Its versatility and adjustable carton size range make it suitable for high-variety production environments.

Q: When should I perform changeovers, and how easy is the process?

A: Changeovers are typically required when switching product types or carton sizes. This machine features a tool-less design that allows changeovers in about 20 minutes, minimizing downtime and enhancing production flexibility.

Q: Where can the conveyor height be adjusted, and why is this important?

A: The conveyor height is adjustable between 800 to 1000 mm, enabling ergonomic integration into different packaging lines. This adaptability allows optimized workflow and smooth product transfer.

Q: What makes the machine safe for operators?

A: Safety is ensured through several features including emergency stop buttons, interlocked safety doors, and overload protection. These measures minimize risks during operation and maintenance, adhering to modern safety standards.

Q: How does the automatic lubrication system affect maintenance?

A: The integrated automatic lubrication system reduces manual maintenance requirements and increases machine reliability. This feature extends component life, decreases the likelihood of breakdowns, and ensures continuous, smooth operation.

Q: What are the main benefits of using a PLC touch screen control system?

A: A PLC touch screen facilitates intuitive and precise machine control, allows quick setting adjustments, and provides real-time diagnostics for troubleshooting. This increases operational efficiency, reduces learning curves for operators, and streamlines production management.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Shrink Wrapping Machines' category

Automatic Palletised Wrapping Machine Material : Stainless Steel Computerized : Yes Voltage : 220V/380V Control System : PLC Control Color : Metallic Grey Dimension (L*W*H) : Customizable Automatic Grade : Automatic Air Pressure : Not Available Weight : Heavy Duty Structure Type : Palletized Wrapping Machine Warranty : 1 Year Roll Diameter : Standard Sizes Supported Shrink Speed : Variable Speed Capacity : High Efficiency

Send Inquiry

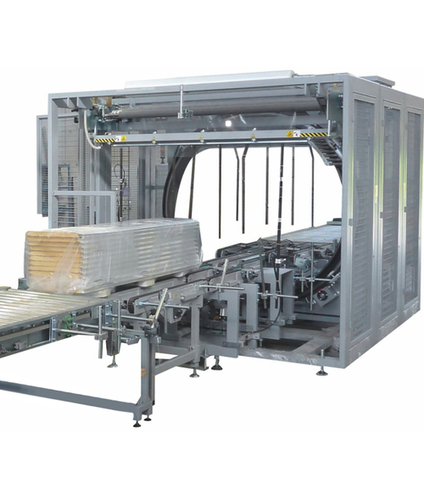

Furniture Shrink Wrapping Machine Material : Stainless Steel Computerized : Yes Voltage : 220V/380V Control System : PLC Control Color : Grey Dimension (L*W*H) : 5000 x 3000 x 2000 mm Automatic Grade : Automatic Air Pressure : 0.6 MPa Weight : 1500 kg Type : Furniture Shrink Wrapping Machine Warranty : 1 year Roll Diameter : 300 mm Shrink Speed : 30 m/min Capacity : 40 packages/hour
